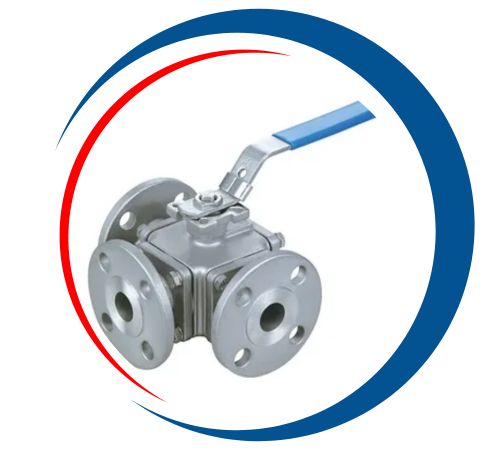

Ayten Tube Fittings stands out as a top-notch manufacturer and supplier of high-performance T Port Ball Valves right in the heart of Addis Ababa, Ethiopia. We specialize in providing dependable flow-diverting and multi-directional control solutions tailored for industrial piping systems. Our T Port Ball Valves are expertly crafted to manage, mix, or distribute the flow of liquids and gases through three interconnected ports, allowing for versatile flow configurations. Built for leak-proof performance and long-lasting durability, these valves are perfect for applications that demand multi-flow operations without the hassle of frequent valve replacements. With a focus on precision engineering, rigorous quality assurance, and the use of corrosion-resistant materials, Ayten Tube Fittings delivers T Port Ball Valves that are not only efficient and safe but also designed to last across various industries.
Our T Port Ball Valves are made from high-quality materials like Stainless Steel (SS304, SS304L, SS316, SS316L), Carbon Steel, Brass, Duplex Steel, and corrosion-resistant alloys such as Hastelloy, Monel, and Inconel. These materials provide exceptional mechanical strength, impressive resistance to high pressure and temperature, and enhanced durability against corrosion and chemicals. The precision-machined T-shaped ball guarantees smooth fluid diversion with minimal torque, ensuring a long service life. These valves are designed with strong sealing integrity, precise dimensions, an anti-leak design, and resistance to vibration and wear, making them ideal for demanding industrial applications that require effective multi-directional flow control.

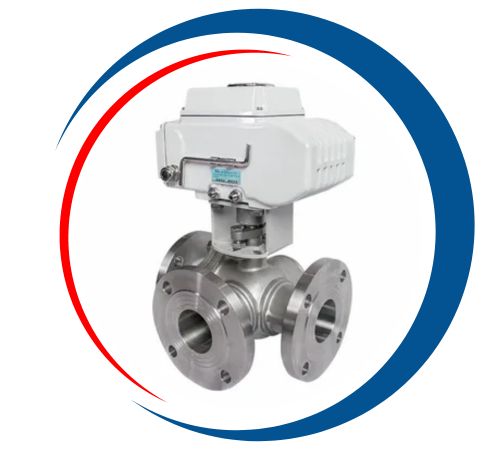

| TYPE : | 3 way T-port Floating Ball Valve |
| PORT : | Full Bore |
| SIZE : | 15 mm to 100mm NB |
| Pressure Rating : |
ASME #150PN 20
ASME #300PN 50
|
| Temperature Range | 35 Deg C to 280 Deg C (Soft Seated) |
| Body Materials | Stainless Steel / Carbon Steel / Alloys |
| Design Standard | API 6D rev 23; ISO 17292 rev 2004 |

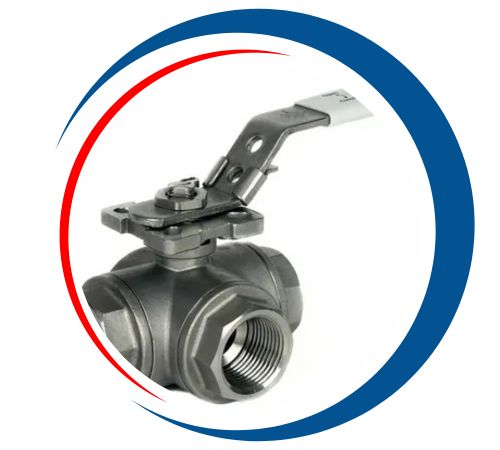

| End Flanges | ASME B16.5 2013 |
| Face to Face Dimension | Non Standard , As per Manufacturer Std |
| Fire safe design | API-607 Rev 2010 |
| Testing | API 598 Rev 2009 |
| Sour Service | NACE MOR 0175 Rev 2009 |
| Documents | BS/EN 10204-3.1 REV 2004 |
At Ayten Tube Fittings, we are the largest supplier, manufacturer, and exporter of T Port Ball Valve in Addis Ababa, Ethiopia. Our advanced manufacturing facilities, strategically positioned in the Ethiopia, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands
| SR.NO. | PART NAME | STAINLESS STEEL | CARBON STEEL | QTY |
|---|---|---|---|---|
| 1 | BODY | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 2 | END CONN. | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 3 | END CONN. SIDE | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 4 | END CONN. BACK | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 5 | BALL | ASTM A276 SS316 | ASTM A276 SS316 | 1 |
| 6 | STEM | ASTM A479 SS316 | ASTM A479 SS316 | 1 |
| 7 | SEAT | PTFE | PTFE | 2 |
| 8 | SEAT SEAL | GRAPHITE / INCONEL | GRAPHITE / INCONEL | 2 |
| 9 | GLAND | SS316 | MS | 1 |
| 8 | GLAND BEARING | DELRIN | DELRIN | 1 |
| 10 | SPACER | SS316 | SS316 | 1 |
| 12 | STEM THRUST WASHER | GFT | GFT | 1 |
| 13 | BODY SEAL | GRAPHITE | GRAPHITE | 1 |
| 14 | STEM O-RING | VITON | VITON | 1 |
| 15 | BODY SEAL | GRAPHITE | GRAPHITE | 2 |
| 16 | END CONN. O-RING | VITON | VITON | 2 |
| 17 | CAVITY | PTFE | PTFE | 2 |
| 18 | STUD | ASTM A193 GR.B8M | ASTM A193 GR.B7 | 4 |
| 19 | NUT | ASTM A193 GR.8M | ASTM A193 GR.2H | 4 |
| 20 | STUD | ASTM A193 GR.B8M | ASTM A193 GR.B7 | 4 |
| 21 | NUT | ASTM A193 GR.8M | ASTM A193 GR.2H | 4 |
| 22 | STUD | ASTM A193 GR.B8M | ASTM A193 GR.B7 | 4 |
| 23 | NUT | ASTM A193 GR.8M | ASTM A193 GR.2H | 4 |
| 24 | LEVER | SS410 | SS410 | 1 |
| 25 | ALLEN BOLT | MS | MS | 1 |
| 26 | STOPER | MS | MS | 1 |
Contact us to get a quick quote for your requirement.
Ayten Tube Fittings is a leading supplier and Stockist of premium T Port Ball Valve in Addis Ababa, Ethiopia. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
T Port Ball Valves are crafted for versatile flow control, making them a go-to choice in industries that need to manage fluid diversion, mixing, or distribution. You’ll often find them in settings like chemical and petrochemical plants, oil and gas operations, food and beverage processing, water treatment facilities, pharmaceuticals, power generation, HVAC systems, marine applications, and various process control systems. These valves are designed to take one inlet and either split the flow into two outlets or merge two streams into a single one. They’re perfect for automation, batching systems, tank switching, fuel lines, and overall fluid management. With T Port Ball Valves, you get enhanced operational flexibility, simpler installation, and improved process control efficiency.
