PP Ball Valve

Home > PP Ball Valve

Ayten Tube Fittings, a trusted manufacturer and supplier based in Addis Ababa, Ethiopia, produces high-quality PP (Polypropylene) Ball Valves known for their durability, chemical resistance, and reliable flow control. Designed for use in corrosive and non-metallic piping systems, these valves offer lightweight construction and long service life. The PP Ball Valves from Ayten ensure leak-free operation, easy installation, and smooth fluid handling even under varying pressure conditions. Committed to quality and innovation, Ayten Tube Fittings provides dependable solutions for industries such as chemical processing, water treatment, pharmaceutical, agriculture, and food and beverage applications.

PP ball valve Manufacturer In Addis Ababa, PP ball valve In Dire Dawa, PP ball valve Gondar, PP ball valve Adama. PP ball valve Jebel Ail, PP ball valve Supplier In Addis Ababa, Ethiopia.

PP Ball Valves are made from Polypropylene (PP), a thermoplastic polymer known for its excellent chemical inertness, low weight, and strong mechanical stability. The material offers resistance to acids, alkalis, and most organic solvents, making it ideal for corrosive environments. These valves provide good tensile strength, impact resistance, and dimensional stability up to temperatures of about 100°C. The smooth internal surface minimizes friction loss and prevents contamination. Non-toxic and corrosion-proof, PP Ball Valves combine mechanical strength with flexibility, ensuring reliable operation in both industrial and sanitary applications.

PP Ball Valve Specifications

Material Of Construction	Unplasticized Poly Vinyl Chloride	Construction	Multi Piece Body
Design	Single body moulded	Test pressure	07 kg./cm2
Max working temp	60 c (consistently)	Size Range	15 m to 80 mm
Connection End	Solid Plain and Ball Valve	Standard	As per requirement

PP Flange End Ball Valve Material of Construction

Material Specification
No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body”O”Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem “O” Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Polypropylene Flange End Ball Valve Dimensions

Size		L	T	OD	ID	H1	H
In.	MM
1/2″	15MM	129	12.5	100	13.5	130	69
3/4″	20MM	142	14	101	19	131	75
1″	25MM	160	20	123	24	165	89
1 1/2″	40MM	182	20	140	38	197	109
2″	50MM	208	22	165	50	200	121
2 1/2″	65MM	230	25	185	63	255	144
3″	80MM	251	25	201	75	255	150
4″	100MM	302	28	228	100	350	182
6″	150MM	428	30	300	150	–	236
8″	200MM	505	32	360	201	–	325
10″	250MM	570	34	425	242	–	310
12″	315MM	590	35	487	300	–	309

Top PP Ball Valve Manufacturing Company in Addis Ababa

At Ayten Tube Fittings, we are a leading supplier, manufacturer, and exporter of PP Ball Valve in Addis Ababa, Ethiopia. Our state-of-the-art manufacturing facilities, strategically located in the Ethiopia, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

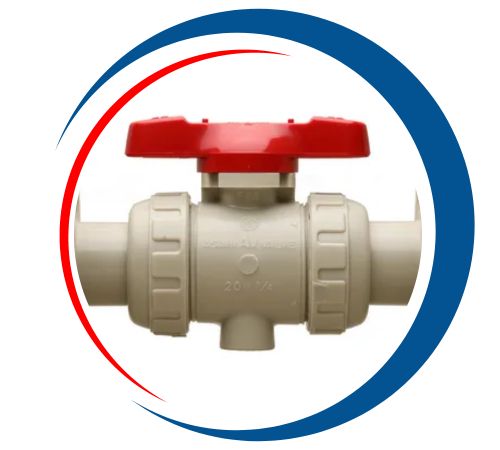

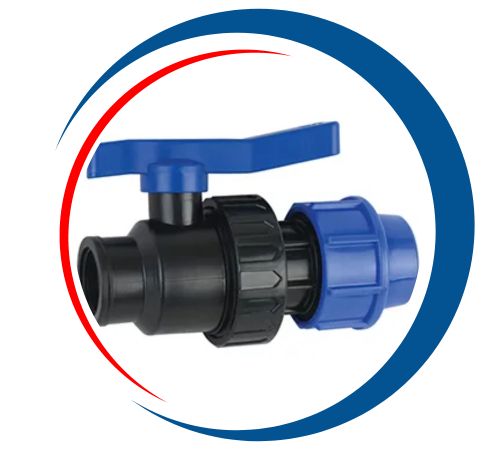

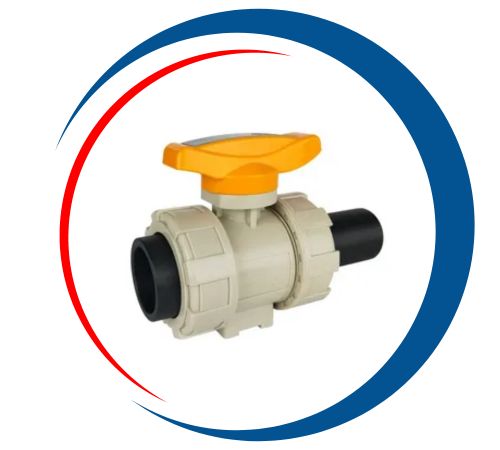

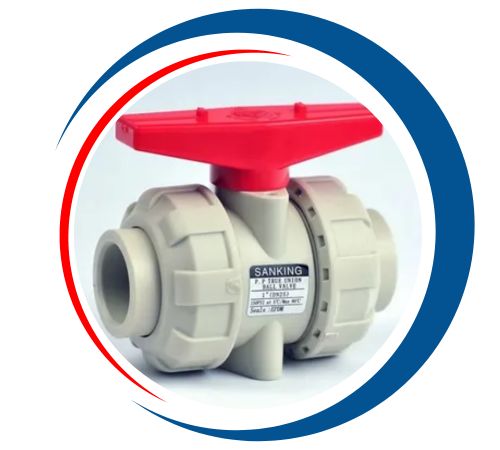

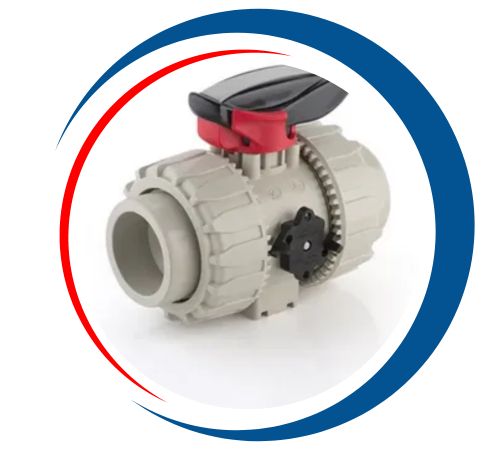

Types of PP Ball Valve

PP ball valve Manufacturer In Addis Ababa, PP ball valve In Dire Dawa, PP ball valve Gondar, PP ball valve Adama. PP ball valve Jebel Ail, PP ball valve Supplier In Addis Ababa, Ethiopia.

Largest Manufacturer and Supplier of PTFE Ball Valve in Addis Ababa, Ethiopia

Ayten Tube Fittings is a leading supplier and stockist of premium PTFE Ball Valve in Addis Ababa, Ethiopia. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

PTFE Ball Valve Uses

PP Ball Valves are widely used in industries requiring corrosion-resistant and lightweight flow control solutions. In the chemical and laboratory sectors, they handle aggressive fluids and acids safely. The water treatment industry uses them for distributing and regulating clean or treated water. In agriculture and irrigation systems, they provide efficient control of fertilizers and water flow. The pharmaceutical and food processing sectors value their hygienic, non-toxic properties. Additionally, PP Ball Valves are employed in electroplating, semiconductor, and environmental engineering systems, offering dependable performance and long service life in both corrosive and clean fluid-handling environments.
