Stainless Steel 304H Instrumentation Tube Fittings

Home > Stainless Steel > Stainless Steel 304H Instrumentation Tube Fittings

Ayten Tube Fittings is a well-respected manufacturer and supplier located in Addis Ababa, Ethiopia. They specialize in high-quality Stainless Steel 304H Instrumentation Tube Fittings, which are designed to perform exceptionally well in high-temperature and high-pressure situations. Crafted from top-notch SS 304H, these fittings boast impressive corrosion resistance, mechanical strength, and precise dimensions. They are engineered to create leak-free connections in critical instrumentation systems, ensuring reliable flow control even in tough environments. SS 304H Instrumentation Tube Fittings are commonly found in industries like petrochemical, power generation, oil and gas, and processing, where durability, temperature resilience, and consistent performance are crucial for safe and efficient operations.

SS 304H Double Ferrule Tube Fittings Supplier in Addis Ababa, DIN 1.4301 Instrumentation Tube Fittings Manufacturer in Adama, SS 304H Compression Tube Fittings Exporter in Adama, Stainless Steel 304H Ferrule Fittings Stockist in Mek’ele, UNS S30409 Instrumentation Tube Fittings Exporter in Gondar , SS 304H Tube Fittings Supplier in Addis Ababa, Stainless Steel 304H Instrumentation Fittings Manufacturers in Dire Dawa, Ethiopia

Stainless Steel 304H Instrumentation Tube Fittings consist of 18–20% chromium, 8–10.5% nickel, and a higher carbon content (0.04–0.10%), which boosts their creep strength and stability at high temperatures. They provide a tensile strength of about 515 MPa, a yield strength of 205 MPa, along with good ductility and hardness. SS 304H retains its structural integrity even at temperatures exceeding 500°C, effectively resisting oxidation and scaling. This well-balanced mix of chemical makeup and mechanical strength makes the alloy perfect for high-pressure instrumentation and thermal process systems that demand both strength and corrosion resistance.

Stainless Steel 304H Instrumentation Tube Fittings Specifications

Specifications	ASTM A182, A276, A479 / ASME SA182, SA276, SA479
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Stainless Steel 304H Instrumentation Tube Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 304H	0.10 max	2.0 max	0.75 max	0.045 max	0.03 max	18 – 20	–	8 – 10.5	–

Stainless Steel 304H Instrumentation Tube Fittings Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
304H	515	205	40	92	201

Top Stainless Steel 304H Instrumentation Tube Fittings Manufacturing Company in Addis Ababa

At Ayten Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel 304H Instrumentation Tube Fittings in Addis Ababa, Ethiopia. Our advanced manufacturing facilities, strategically positioned in the Ethiopia, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

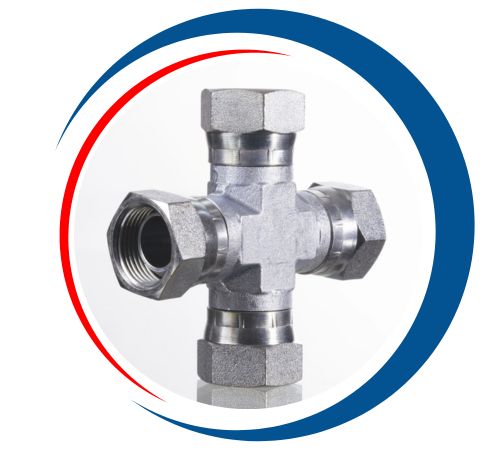

Types of Stainless Steel 304H Instrumentation Tube Fittings

Stainless Steel 304H Instrumentation Tube Fittings Equivalent

STANDARD	UNS	WERKSTOFF NR.	JIS
SS 304H	S30409	1.4948	SUS 304H

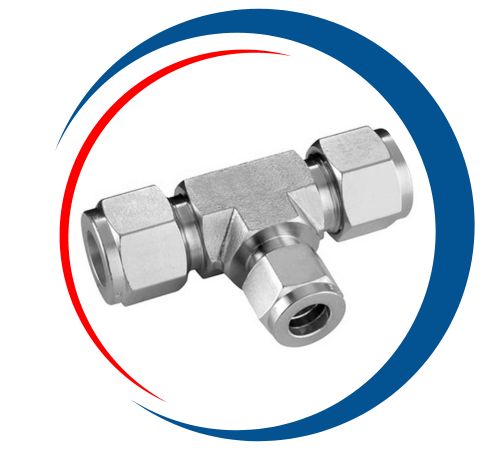

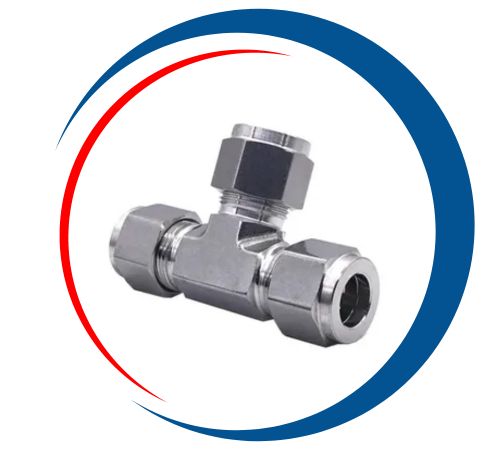

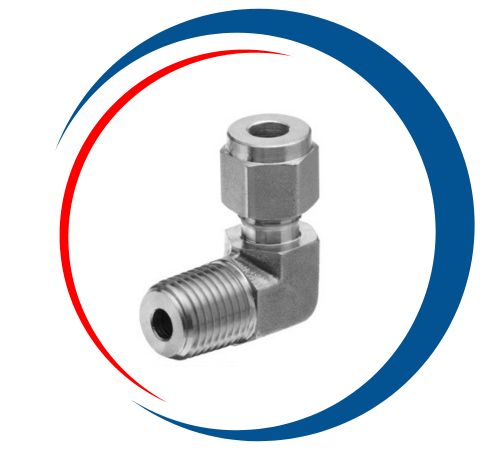

SS 304H Female Elbow Manufacturer in Dire Dawa, SS 304H Male Run Tee Supplier in Adama, Stainless Steel 304H Male Connector Exporter in Addis Ababa, Grade 304H SS Female Connector Stockist in Mek’ele, SS 304H Male Branch Tee Exporter in Addis Ababa, SUS 304H Bulk Head Female Connector Supplier in Gondar, SS 304 Bulk Head Male Connector Stockist in Addis Ababa, SS 304H Male Elbow Supplier in Dire Dawa, Ethiopia

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel 304H Instrumentation Tube Fittings in Addis Ababa, Ethiopia

Top Stainless Steel 304H Instrumentation Tube Fittings Manufacturing Company in Addis Ababa

At Ayten Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 304H Instrumentation Tube Fittings in Addis Ababa, Ethiopia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Ethiopia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Stainless Steel 304H Instrumentation Tube Fittings Uses

Stainless Steel 304H Instrumentation Tube Fittings are widely utilized in power plants, refineries, and chemical industries for systems that measure pressure, temperature, and flow. Thanks to their excellent heat resistance, they’re perfect for steam lines, boiler systems, and thermal processing plants. These fittings also play a crucial role in the oil and gas, petrochemical, and energy sectors, ensuring reliable and leak-proof fluid transmission. Their corrosion resistance and mechanical stability make them a top choice in marine, food processing, and pharmaceutical equipment, where cleanliness and durability are essential. SS 304H fittings guarantee safety, efficiency, and long-lasting reliability in challenging industrial settings.
