Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Ayten Tube Fittings, a trusted manufacturer and supplier based in Addis Ababa, Ethiopia, offers premium-quality Monel Tube Fittings known for their superior corrosion resistance, strength, and durability. Crafted from high-grade Monel alloys, these fittings are designed for reliable performance in highly corrosive and high-pressure environments. They provide leak-proof connections, excellent mechanical stability, and long service life. Ayten Tube Fittings ensures every product meets international quality standards, delivering dependable solutions for critical applications across chemical processing, marine, oil and gas, power generation, and aerospace industries where both precision and corrosion resistance are essential.

Monel Tube Fittings Price in Addis Ababa, Monel Instrumentation Fittings Supplier in Dire Dawa, Monel Alloy Double Ferrule Fittings Manufacturer in Gondar, Monel Alloy Branch Tees Price in Adama, Monel Female Elbow Dealer in Dire Dawa, Monel Hydraulic Tube Fittings Supplier in Mek’ele, Monel Blanking Plug Supplier And Manufacturer in Mek’ele, Monel Union Tee In Addis Ababa, Ethiopia.

Monel Tube Fittings are made from Monel 400 or Monel K500 alloys, primarily composed of nickel (≈67%) and copper (≈30%), with small amounts of iron and manganese. This composition offers outstanding resistance to seawater, acids, and alkalis, along with excellent mechanical strength and toughness. Monel K500, being age-hardened, provides higher tensile and yield strength while maintaining corrosion resistance. These fittings exhibit excellent fatigue resistance, ductility, and stability across a wide temperature range, ensuring durability and consistent performance in both high-pressure and corrosive industrial environments.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

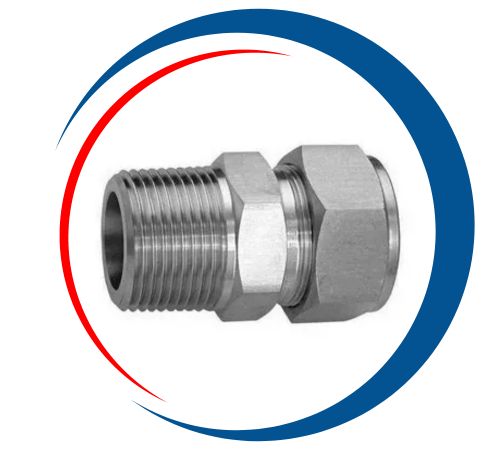

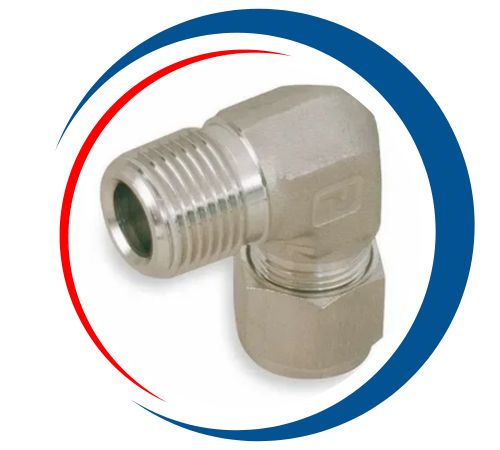

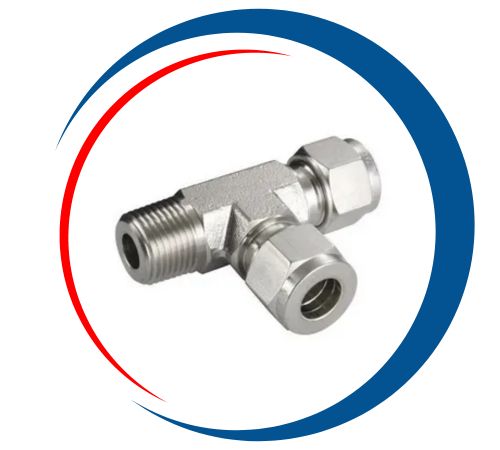

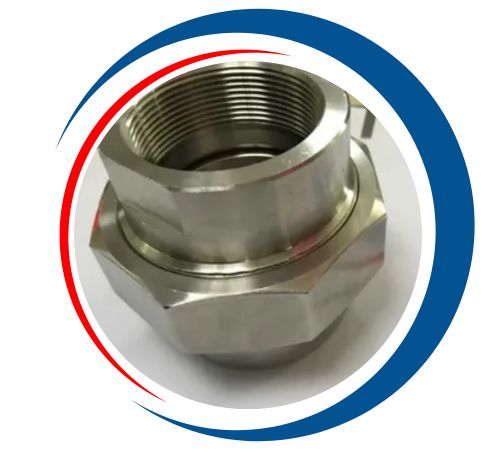

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

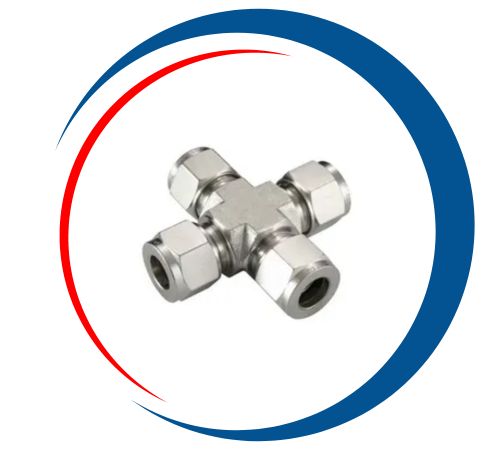

Monel Male Bulkhead Connector Manufacturer in Addis Ababa, Monel Hydraulic Fittings Exporter in Dire Dawa, Monel Single Ferrule Compression Fittings Supplier in Gondar, Monel Flared Tube Fittings Supplier in Adama, Monel Union Cross In Gondar, Monel Instrumentation Fittings In Adama, Monel Bulkhead Union Price List in Mek’ele, Monel Ferrule Tube Fittings Manufacturer in Addis Ababa, Monel Alloy Compression Tube Fittings Exporter in Dire Dawa, Ethiopia.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in Addis Ababa, Ethiopia

At Ayten Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Monel Tube Fittings in Addis Ababa, Ethiopia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Ethiopia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Monel Tube Fittings Uses

Monel Tube Fittings are widely used in industries that require corrosion-resistant and strong connection solutions. In the marine and offshore sectors, they perform exceptionally well in seawater, brine, and salt-laden atmospheres. The chemical and petrochemical industries rely on them for handling acidic and alkaline fluids. In the oil and gas sector, they are ideal for instrumentation, control, and process systems exposed to high pressure and corrosive media. Additionally, Monel Tube Fittings are used in aerospace, power generation, and desalination plants, providing leak-free, long-lasting, and reliable performance in demanding environments.
