Incoloy 800 Tube Fittings

Home > Incoloy > Incoloy 800 Tube Fittings

Ayten Tube Fittings, based in Addis Ababa, Ethiopia, has built a solid reputation as a manufacturer and supplier of high-quality industrial fittings and valves known for their reliability, precision, and durability. One of their standout products, the Incoloy 800 Tube Fittings, is specifically engineered to excel in high-temperature and corrosive settings. Crafted using cutting-edge technology and rigorous quality control, these fittings offer exceptional resistance to oxidation and carburization. Ayten Tube Fittings caters to vital industries such as oil and gas, petrochemical, marine, and power generation, providing innovative and trustworthy Incoloy 800 Tube Fittings to clients both in Ethiopia and around the globe.

Incoloy 800 Instrumentation Tube Fittings Supplier in Addis Ababa, Incoloy 800 Double Ferrule Tube Fittings Price List in Dire Dawa, Nickel Alloy Twin Ferrule Fittings Manufacturer in Gondar, Incoloy 800 Single Ferrule Fittings In Adama, Incoloy 800 Bulkhead Union, Incoloy 800 Ferrule Fittings Exporter in Dire Dawa, Incoloy 800 Instrumentation Fittings Manufacturer in Mek’ele, Incoloy 800 Compression Tube Fittings in Addis Ababa, Ethiopia.

The Incoloy 800 Tube Fittings are made from a nickel-iron-chromium alloy, enhanced with controlled amounts of aluminum and titanium, which boosts their strength and stability at high temperatures. These fittings boast impressive mechanical properties, including high tensile strength, excellent creep resistance, and remarkable oxidation resistance. The alloy retains its structural integrity even during thermal cycling and in harsh corrosive environments. With outstanding resistance to carburization and chloride stress corrosion cracking, Incoloy 800 Tube Fittings guarantee long-lasting performance and reliability, even under extreme operating conditions.

Incoloy 800 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy 800 Tube Fittings Chemical Composition

Grade	Ni	Fe	Cr	Cu	Ti	Al	C	Mn	S	Si
Incoloy 800	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.1 max	1.5 max	.015 max	1.0 max

Incoloy 800 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1350-1400 ℃	Psi – 75,000 , MPa -520	Psi – 30,000 , MPa – 205	30 – 35 %

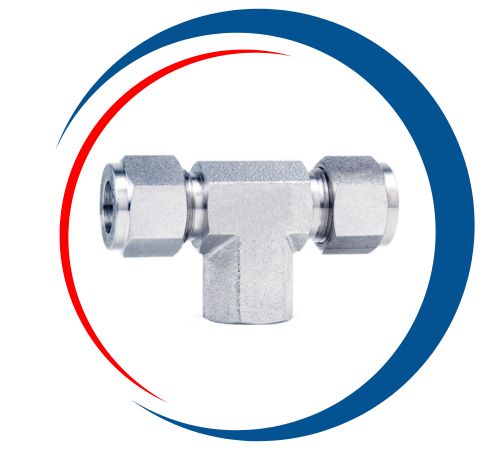

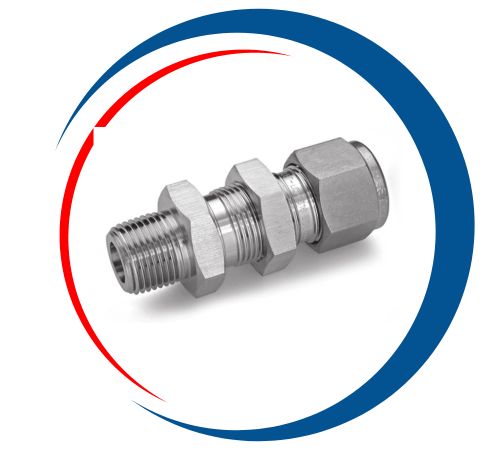

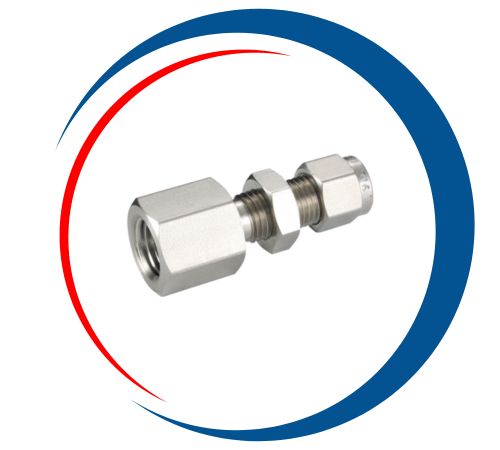

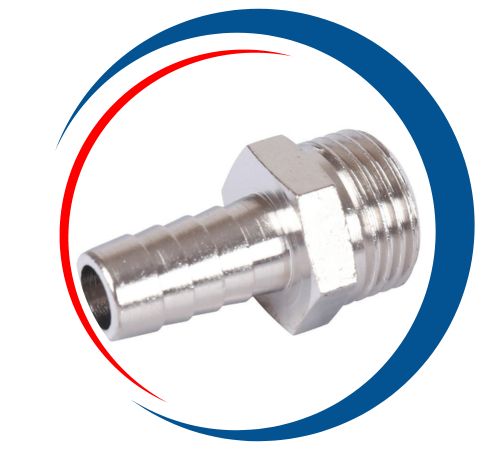

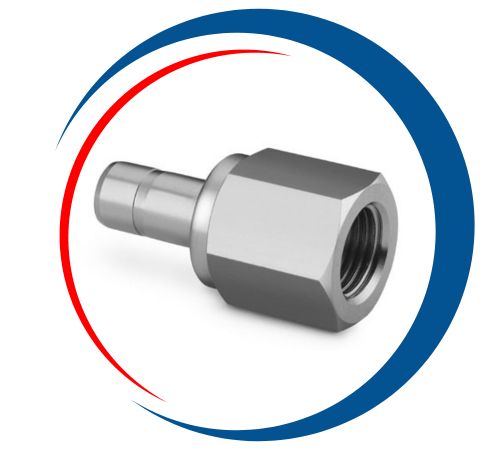

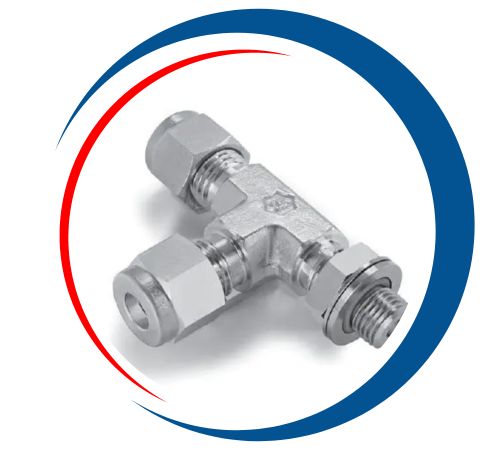

Types of Incoloy 800 Tube Fittings

Incoloy 800 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 800	N08800	1.4876	Z8NC32-21	X10NiCrAlTi32-20	NCF 800	NA 15	ЭИ670	XH32T

Incoloy 800 Bulkhead Union, Incoloy 800 Alloy Tube To Union, Incoloy 800 Instrumentation Tube Fittings Price in Addis Ababa, Incoloy 800 Male Branch Tee Supplier in Dire Dawa, Incoloy 800 Bulk Head Female Connector Manufacturer in Gondar, Incoloy 800 Single Ferrule Tube Fittings Price in Adama, Incoloy 800 Male Run Tee Supplier And Manufacturer in Mek’ele, Incoloy 800 Male Elbow In Addis Ababa, Ethiopia.

Largest Manufacturer and Supplier of Incoloy 800 Tube Fittings in Addis Ababa, Ethiopia

At Ayten Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 800 Tube Fittings in Addis Ababa, Ethiopia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Ethiopia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 800 Tube Fittings Uses

These fittings are widely utilized in industries that require both high-temperature strength and corrosion resistance. They are perfect for applications in heat exchangers, chemical processing systems, power plants, refineries, and marine settings. Incoloy 800 Tube Fittings operate efficiently in processes involving steam, acidic gases, and oxidizing atmospheres. Their ability to endure severe thermal and chemical conditions ensures leak-free, safe, and reliable connections in critical systems. By enhancing the longevity and efficiency of industrial piping systems, Incoloy 800 Tube Fittings have become the go-to choice for high-performance engineering applications worldwide.
